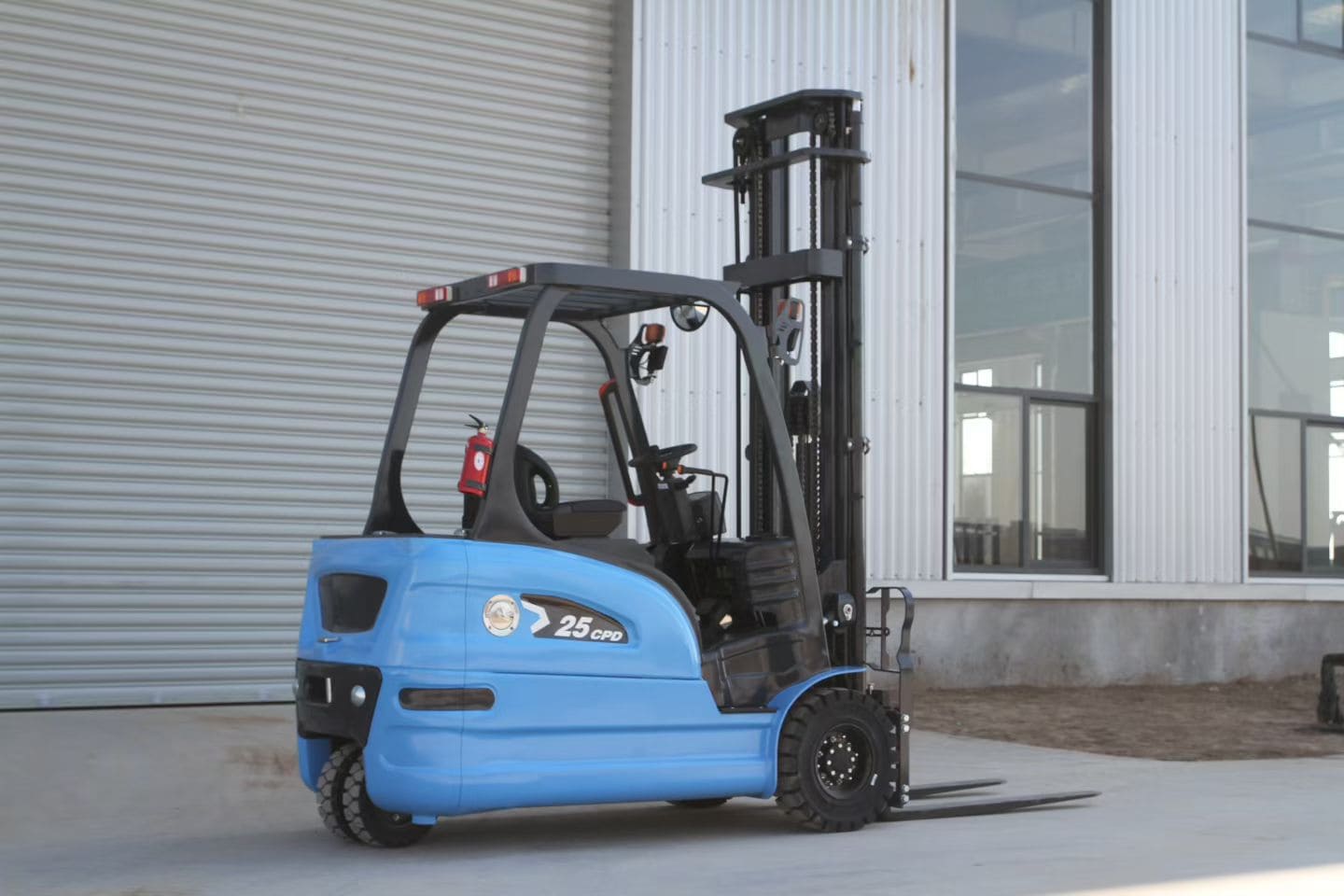

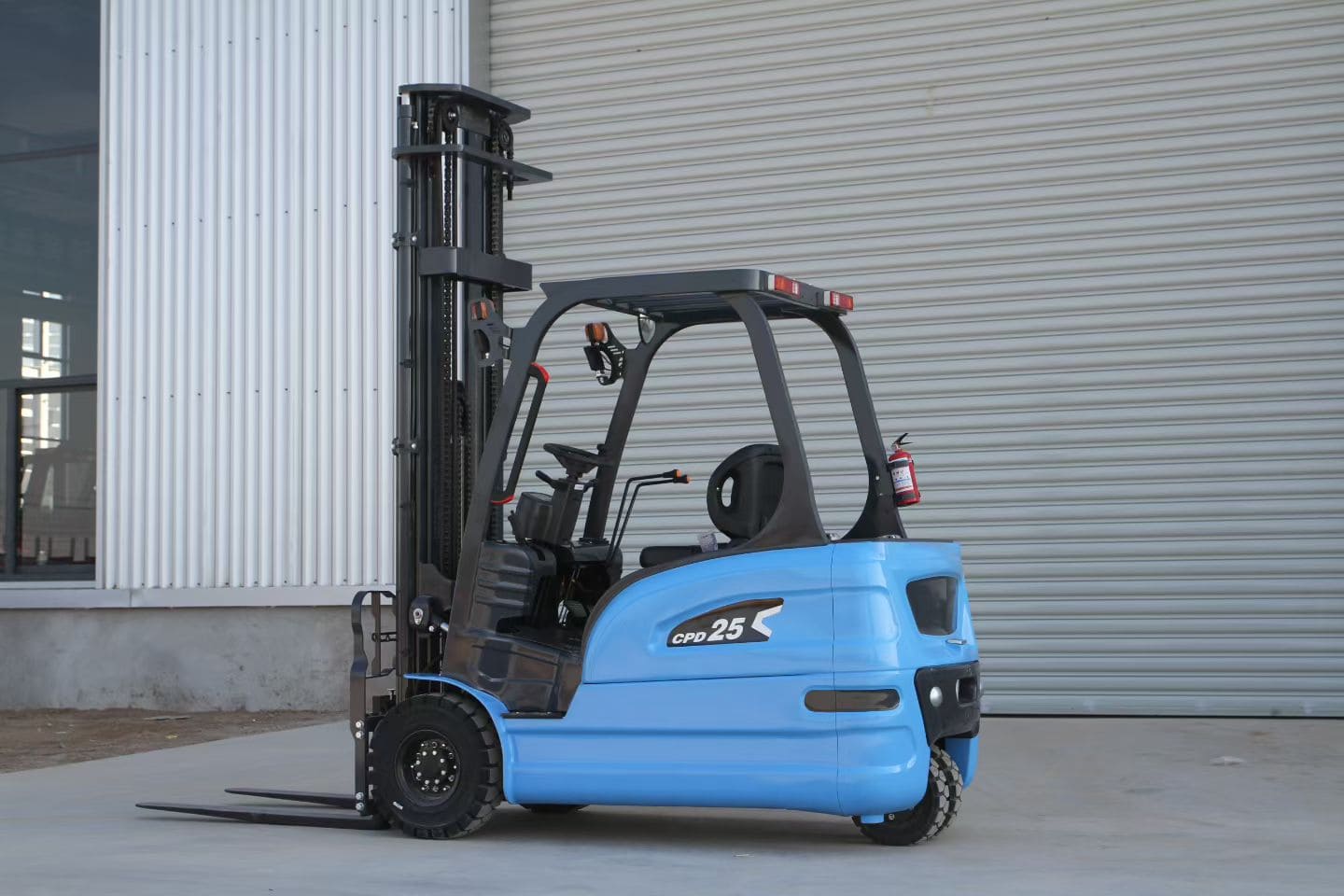

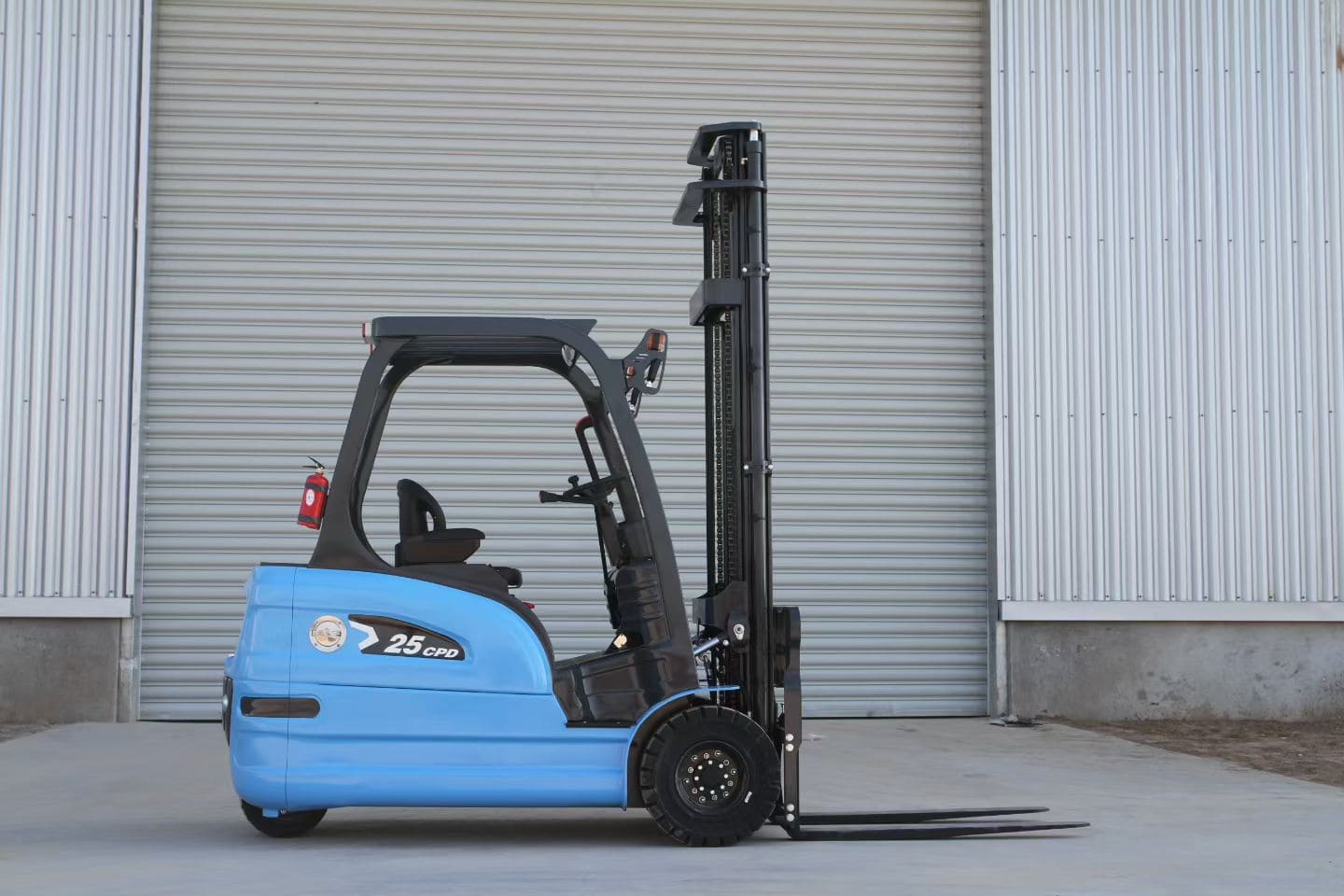

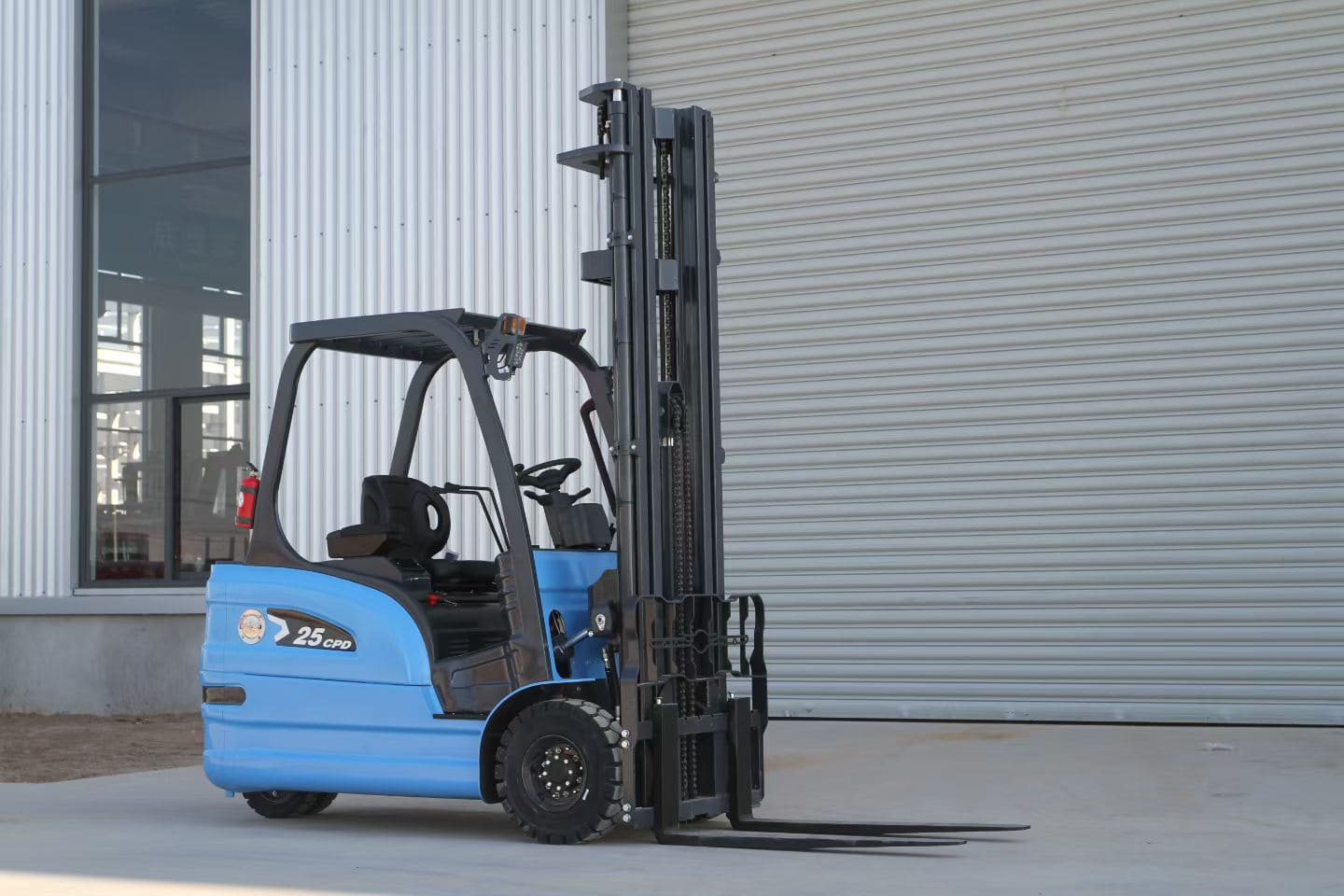

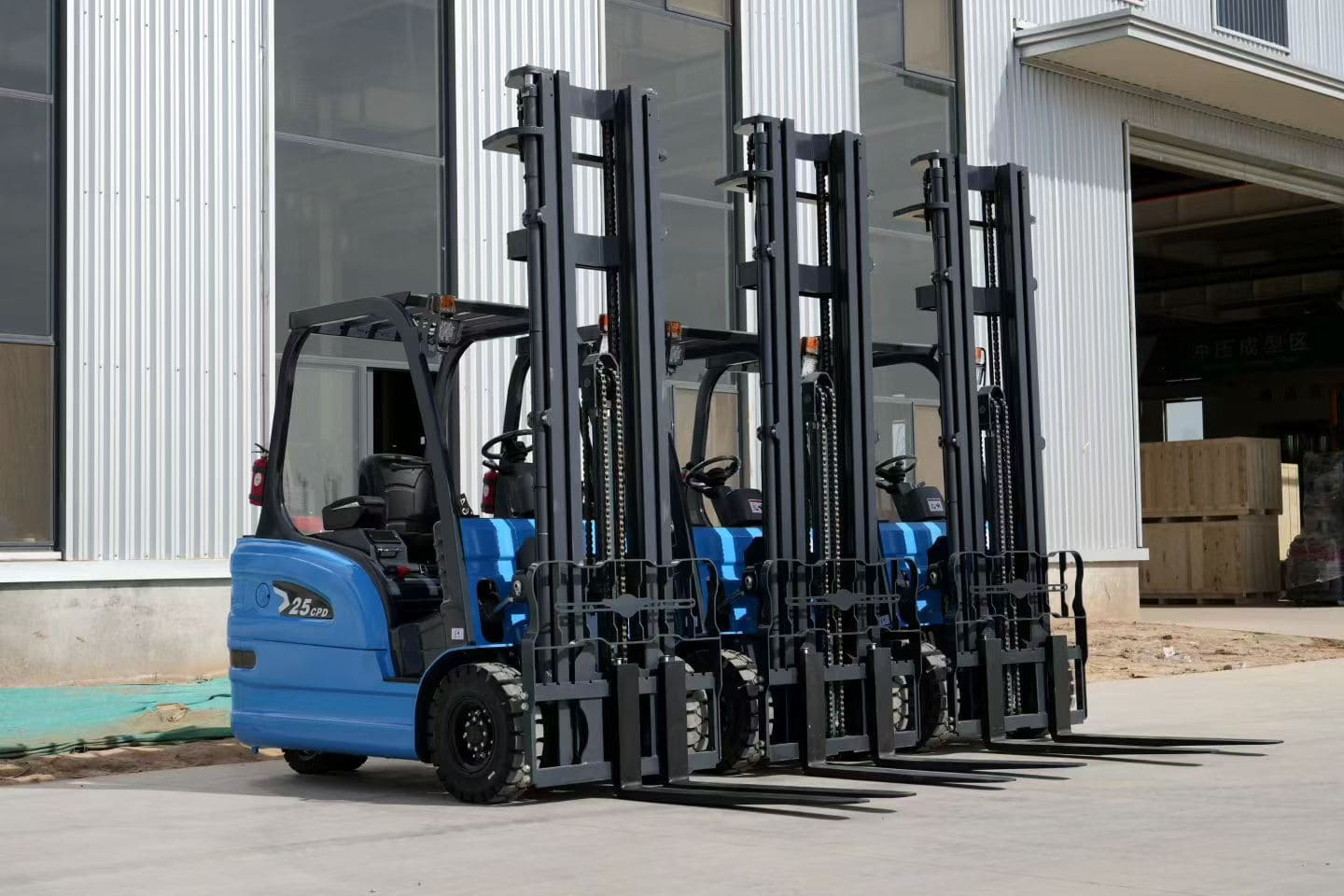

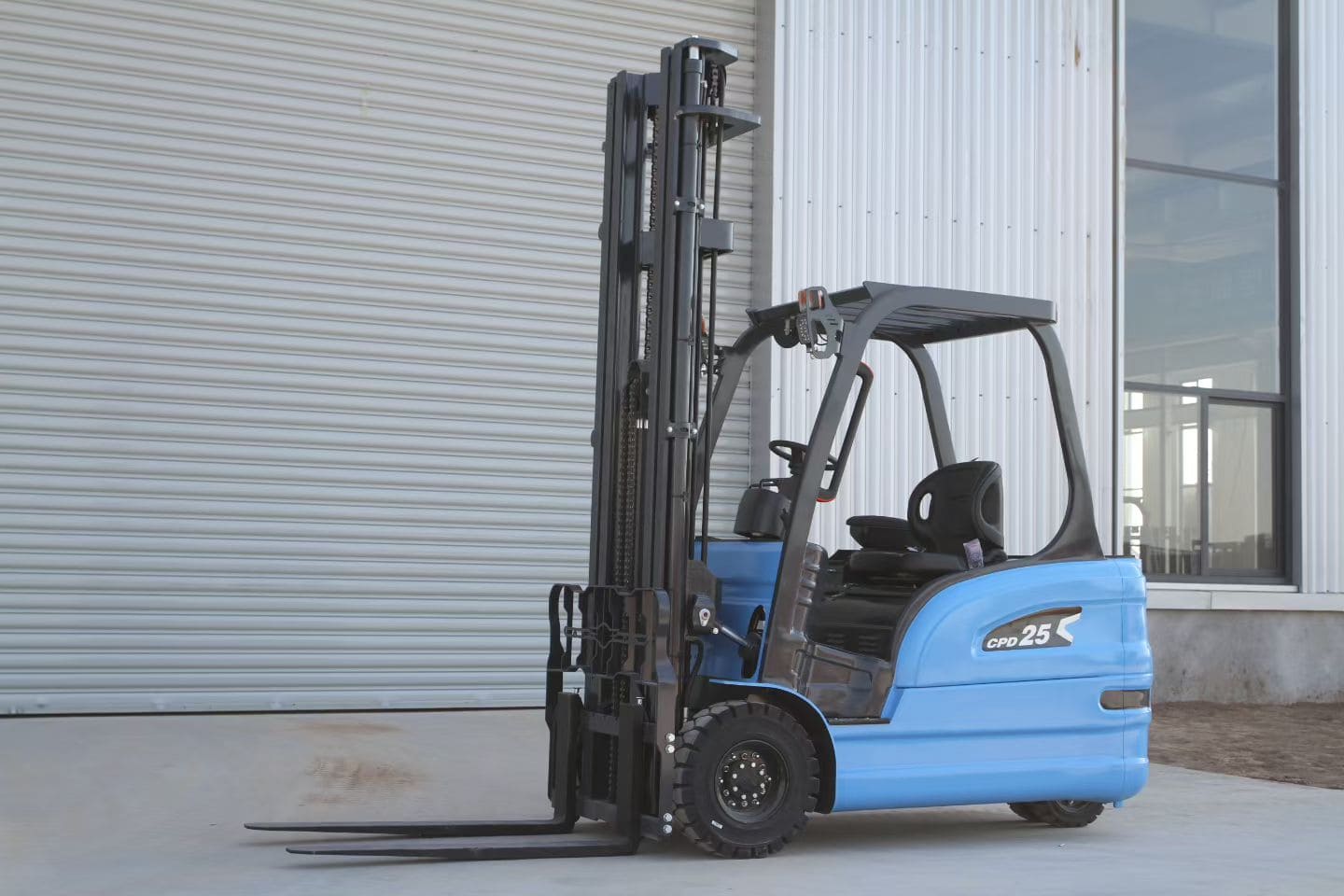

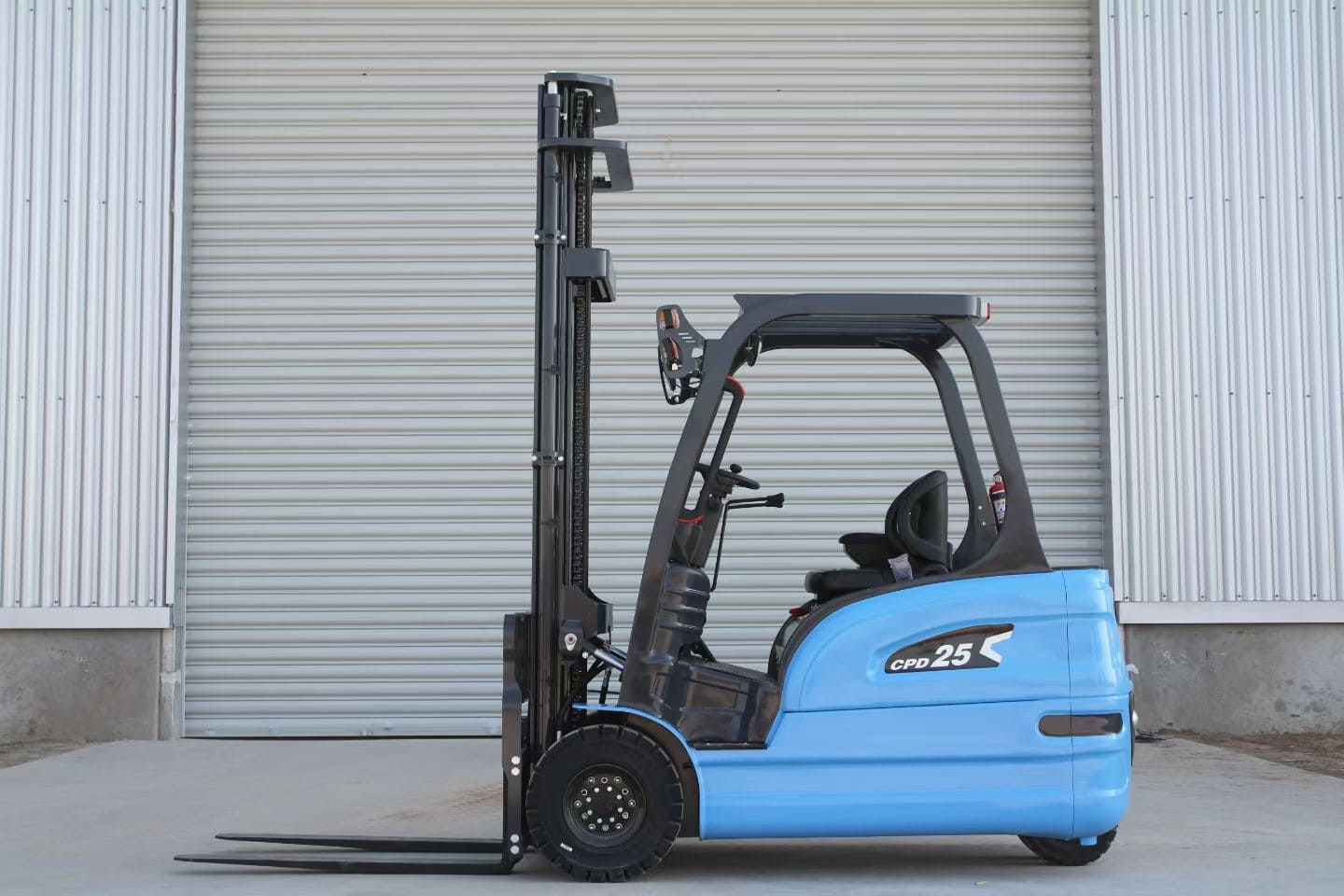

2.5 Ton Three-Wheel Electric Forklift

The 2.5 ton three-wheel electric forklift is built for warehouse work where turning space matters. Compared with a conventional four-wheel forklift, the three-wheel layout gives the truck a tighter turning circle and makes it easier to work between racks, around production lines and in loading areas where space is limited.

This model has a 2500 kg rated capacity, a 500 mm load center and a standard lifting height of 3000 mm. The truck is operated from a seated position and uses electric drive, making it suitable for regular materi

al handling inside warehouses, factories and distribution centers.

For companies replacing older IC forklifts or looking for a more compact electric truck, the CPDS25 provides useful capacity without making the overall truck unnecessarily large.

Quick Product Highlights

✔ 2500 kg Load Capacity
✔ Three-Wheel Compact Design
✔ 1900 mm Turning Radius
✔ 3000 mm Standard Lift Height
✔ AC Electric Drive System
✔ OEM & ODM Available

Specifications of 2.5 Ton Three-Wheel Electric Forklift

Key Features

2500 kg Load Capacity

The CPDS25 has a rated load capacity of 2500 kg at a 500 mm load center. This gives it enough capacity for many standard pallet loads used in manufacturing, warehousing and distribution.

It can be used for loading and unloading, pallet movement, rack stacking and moving materials between different parts of a factory.

Three-Wheel Design

The three-wheel chassis is one of the main differences between this model and a standard four-wheel electric forklift.

With a 1900 mm turning radius, the truck can turn in relatively limited working space. This is useful in warehouses where aisle width and available floor space are important considerations when selecting a forklift.

The compact layout also makes frequent direction changes easier during everyday pallet handling.

3000 mm Standard Lift Height

The standard mast provides a 3000 mm lifting height, which covers many common warehouse stacking requirements.

The mast height when lowered is 2180 mm, while the overall mast height at full lift is 4100 mm. Other mast configurations can be discussed when a customer's warehouse requires a different stacking height.

Compact Body for Warehouse Work

Overall truck length is 3390 mm, including the forks, while the length to the fork face is 2280 mm.

Overall width is 1120 mm.

These dimensions, together with the three-wheel chassis, make the truck suitable for indoor areas where operators need to move between racks, pallets and production equipment throughout the working day.

PERFORMANCE FOR DAILY MATERIAL HANDLING

This forklift is designed around practical warehouse use rather than simply maximum travel speed.

Travel speed is 9 km/h when loaded and 11 km/h when unloaded. Lifting speed is 0.24 m/s under load and 0.30 m/s without load.

Maximum gradeability is 15%.

For braking, the truck uses a hydraulic + mechanical service brake together with a mechanical parking brake.

These specifications make the CPDS25 suitable for normal loading, stacking and warehouse transport where controllability and maneuverability are important.

ELECTRIC DRIVE SYSTEM

The CPDS25 uses an AC drive control system with a 7.5 kW rated drive motor. The rated lifting motor power is 8 kW.

Electric drive is particularly useful for indoor material handling because there are no tailpipe emissions during operation. Noise is also lower than with a conventional diesel forklift, which matters when forklifts work close to warehouse or production staff.

The battery specification can be configured according to the customer's required working hours and application.

FORKS & LOAD HANDLING

Standard fork dimensions are:

40 × 122 × 1070 mm

The fork carriage has an outside width of 1040 mm.

For standard pallet handling, the truck requires an aisle width of approximately 3580 mm for a 1200 × 1000 mm pallet and 3780 mm for an 800 × 1200 mm pallet, based on the supplied specification.

Different fork dimensions and attachments can be discussed for applications that do not use standard pallet sizes.

TIRES & CHASSIS

The specification provides pneumatic/solid tire options. Drive tire size is 650-10, while the steering tire size is 15 × 4.5-8.

The truck has a wheelbase of 1606 mm and an operating weight of approximately 3300 ± 200 kg including the battery.

The combination of a compact wheelbase and three-wheel configuration is intended to give the truck better maneuverability without reducing its 2.5 ton rated capacity.

WHERE CAN A THREE-WHEEL ELECTRIC FORKLIFT BE USED?

Warehouses

The compact turning radius makes the truck useful for pallet movement and stacking where floor space is limited.

Manufacturing Plants

It can move raw materials, components and finished products between production and storage areas without the exhaust emissions associated with an IC forklift.

Distribution Centers

Suitable for repeated pallet movement, order preparation and loading work.

Indoor Storage Areas

The electric power system is a practical choice for facilities where forklifts spend much of the working day indoors.

Loading Areas

The 2500 kg capacity gives the truck enough flexibility for many common palletized goods while keeping the chassis relatively compact.

WHY CHOOSE A THREE-WHEEL ELECTRIC FORKLIFT?

A larger forklift is not always the better choice.

In many warehouses, the actual problem is not lifting capacity but available turning and aisle space. A conventional four-wheel forklift may have the required capacity but take up more room when turning between racks.

The three-wheel CPDS25 is designed for this type of application. It keeps a 2500 kg capacity while offering a 1900 mm turning radius.

For warehouses handling loads heavier than the typical 1.5–2.0 ton range but still needing a relatively compact truck, this gives buyers another option between smaller warehouse forklifts and larger four-wheel models.

WHY CHOOSE EIOUU ELECTRIC FORKLIFT?

Factory Direct

EIOUU supplies electric forklifts for overseas distributors, wholesalers, importers and end users. Different configurations can be confirmed before production according to the customer's application.

OEM & ODM Support

For distributors building their own forklift range, we support OEM and ODM customization.

Logo, body color, labels and selected product configurations can be adjusted according to order requirements.

Different Battery Options

Battery configuration can be selected according to required working hours, charging conditions and local market requirements.

Mast & Fork Customization

Standard lift height is 3000 mm, but different mast and fork configurations can be supplied when required.

Attachment Options

Depending on the materials being handled, customers can discuss options such as side shifters, fork positioners and other forklift attachments.

Distributor & Wholesale Orders

We work with international B2B buyers who need forklifts for resale or local distribution. Product appearance and configuration can be adjusted for different target markets.

OEM & ODM CUSTOMIZATION

Available options can include:

Logo · Body Color · Battery · Charger · Mast · Lift Height · Fork Size · Tires · Attachments

For distributors, the CPDS25 can be configured around local customer requirements instead of being limited to one fixed specification.
