PRODUCT DESCRIPTION
HEAVY-DUTY PALLET STACKING · FACTORY DIRECT · OEM & ODM
3-Ton Electric Stacker
CDD30 Series — 3,000 kg rated capacity, stand-on operation and four lift-height options for industrial pallet handling.
 Actual product photography · 3-ton electric stacker · Mast options available | KEY BUYER HIGHLIGHTS Heavy Loads. |
Key Technical Specifications at a Glance
LOAD CAPACITY 3,000 kg500 mm load center | LIFT OPTIONS 2,000–3,500 mmFour model variants | ELECTRIC POWER 3 kW + 3 kWDrive and lift motors | OPERATION Stand-OnIndustrial pallet handling |
Engineered for Demanding Industrial Workplaces
Reinforced lifting structure, electric power and practical stand-on control.
STRUCTURE & LOAD SUPPORT 1. Reinforced for Heavy PalletsThe 3-ton electric stacker combines a reinforced mast with heavy-duty adjustable forks for regular pallet stacking in warehouses, factories and logistics centers. ● Fork size: 76 × 230 × 1,150 mm. |  |
 | POWER & OPERATION 2. Electric Travel and LiftingA 3 kW drive motor and 3 kW lift motor support repeated pallet handling. Stand-on operation is designed for frequent movements and regular stacking cycles. ● 24 V / 210 Ah reference battery. |
Choose the Lift Height for Your Racking
Available models cover four lift heights. Confirm the required stacking height, pallet load, mast dimensions and residual capacity before selecting the configuration.
| MODEL | LIFT HEIGHT |
|---|---|
| CDD3020 | 2,000 mm |
| CDD3025 | 2,500 mm |
| CDD3030 | 3,000 mm |
| CDD3035 | 3,500 mm |

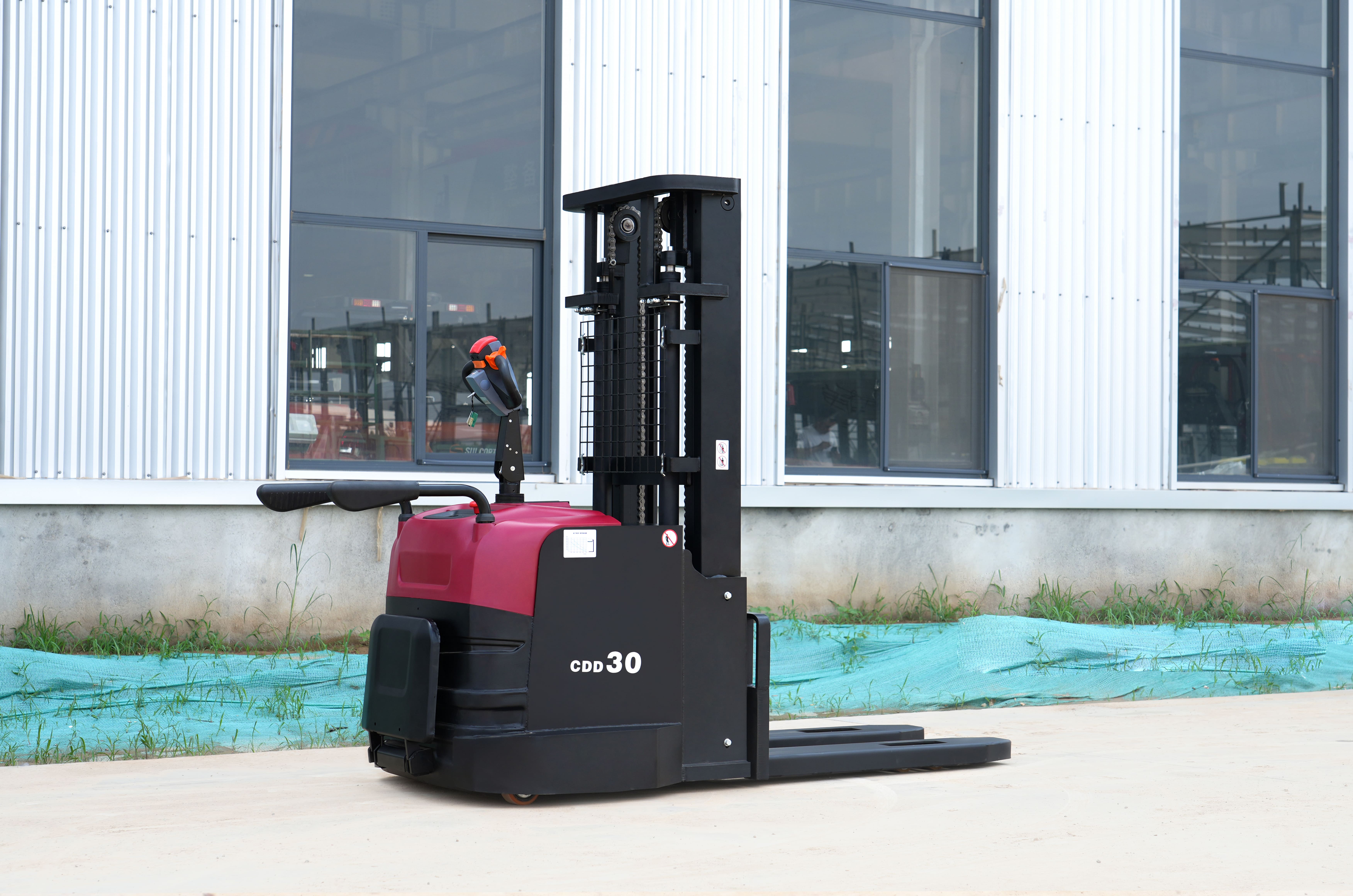

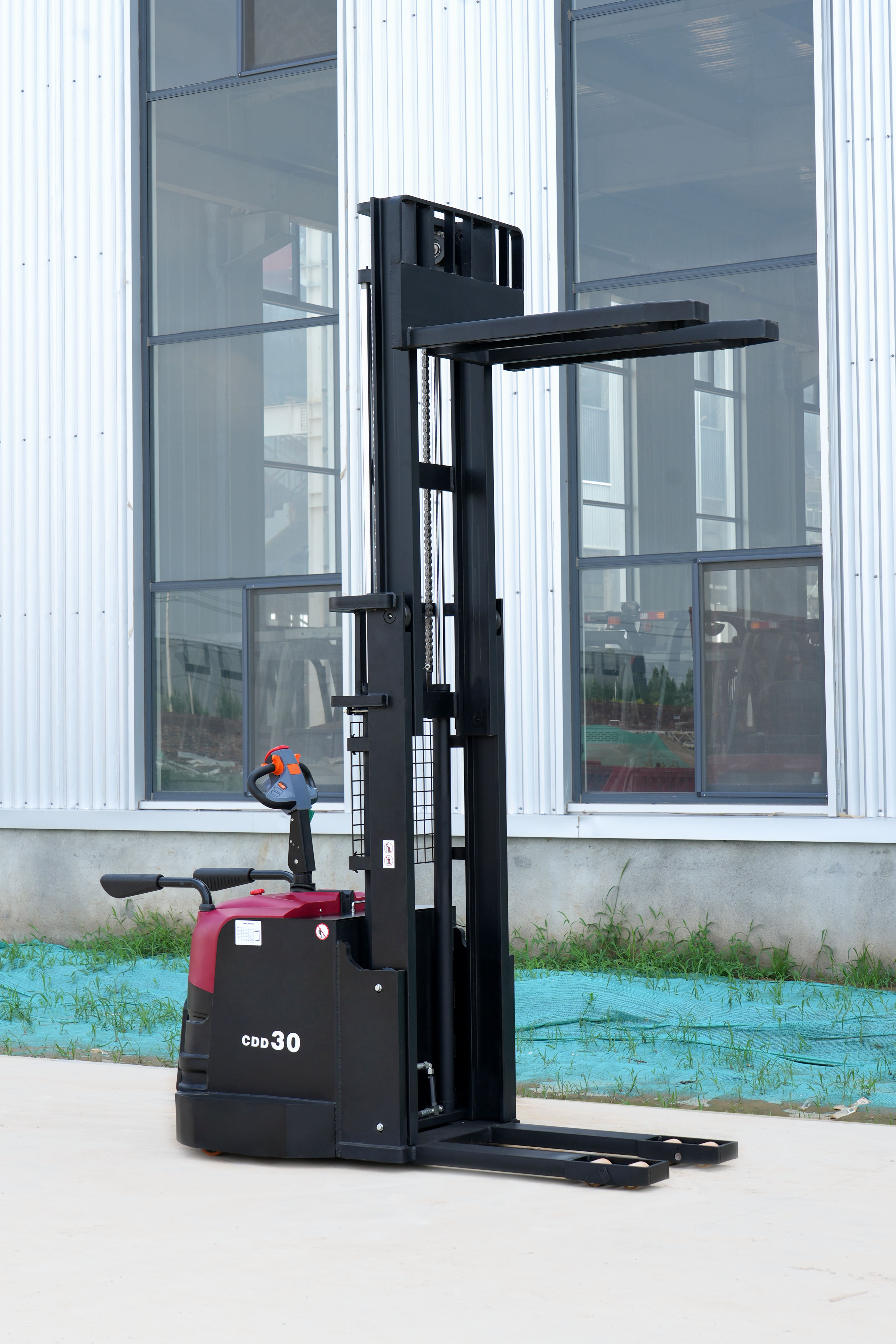

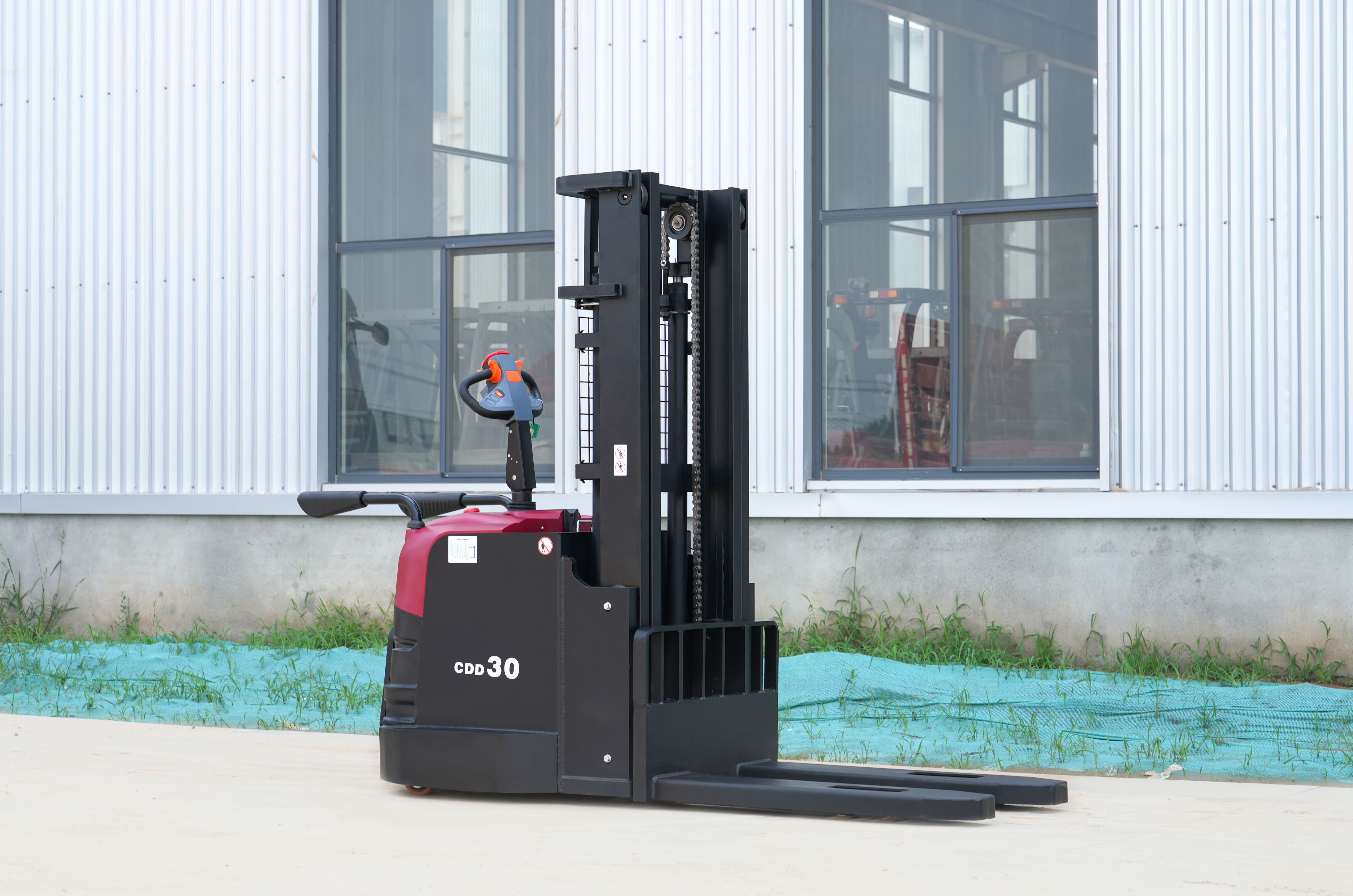

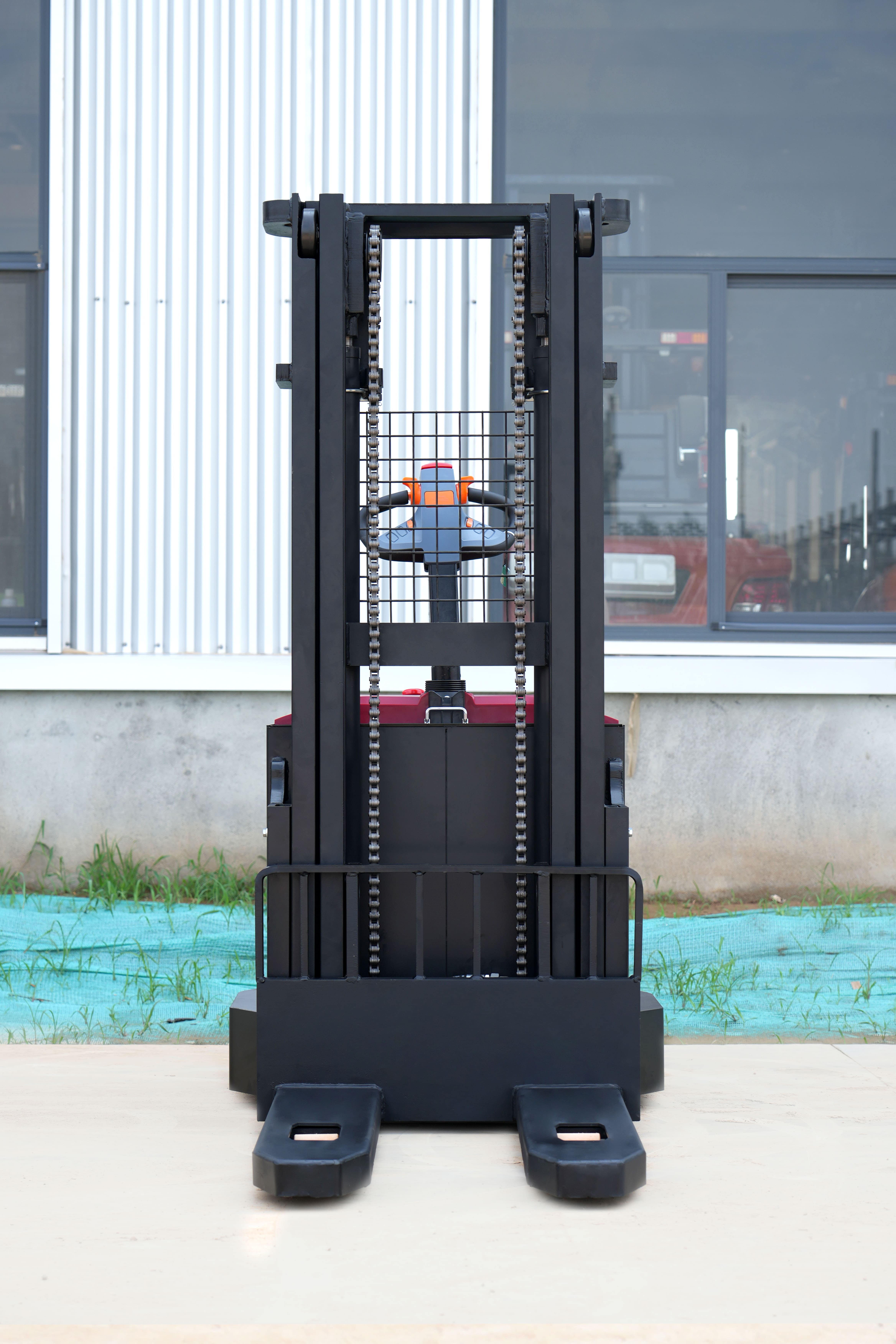

Product Photo Gallery
Four views of the actual 3-ton electric stacker, including the mast, forks and operator side.
 |  |
 | |
Detailed Technical Parameters
CDD30 series reference values. Paired dimensions and speeds are reproduced from the product specification; confirm which values apply to your chosen model and working conditions in the quotation.
| PARAMETER | REFERENCE VALUE |
|---|---|
| Model range | CDD3020 / CDD3025 / CDD3030 / CDD3035 |
| Rated load capacity | 3,000 kg |
| Load center | 500 mm |
| Operation type | Stand-on |
| Power type | Electric |
| Lift-height options | 2,000 / 2,500 / 3,000 / 3,500 mm |
| Overall length | 2,380 / 2,790 mm |
| Overall width | 1,025 ± 5 mm |
| Fork size | 76 × 230 × 1,150 mm |
| Fork outside width | 760 mm |
| Turning radius | 1,980 / 2,390 mm |
| Travel speed | 3.8 / 5.0 km/h |
| Lift speed | 75 / 115 mm/s |
| Drive motor | 3 kW |
| Lift motor | 3 kW |
| Reference battery | 24 V / 210 Ah |
| Brake | Electromagnetic |
| Tire type | Polyurethane |
| Noise level | 74 dB(A) |
Factory Direct · Wholesale · OEM & ODM
EIOUU supports distributors, wholesalers and industrial buyers with selected branding, color, mast and battery configurations. Share your target market, order quantity and handling requirements.
Your BrandCustom logo and nameplate | Your ApplicationPallet dimensions and load center |
Built for Industrial Pallet Handling
Warehouse storage · Raw material handling · Production supply · Logistics centers · Distribution facilities
This stacker is intended mainly for pallet stacking and short-distance transport. Confirm pallet compatibility, floor conditions, aisle dimensions and required lift height before selecting the model.
