PRODUCT DESCRIPTION

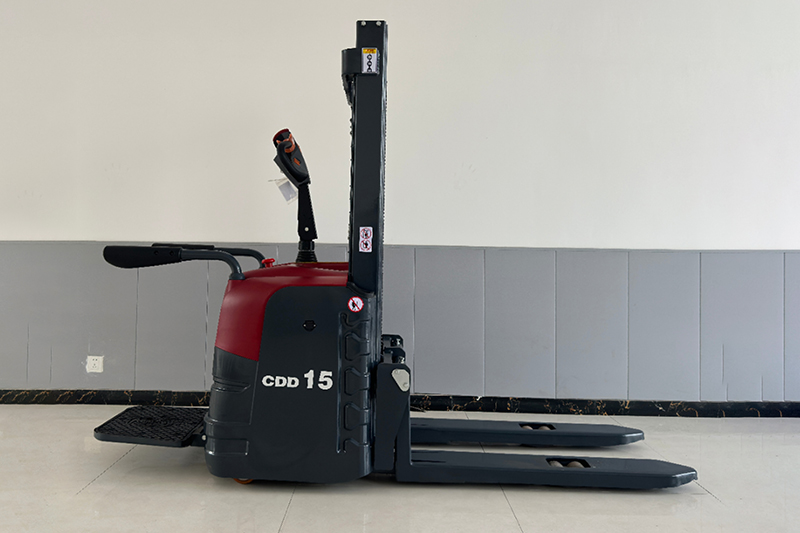

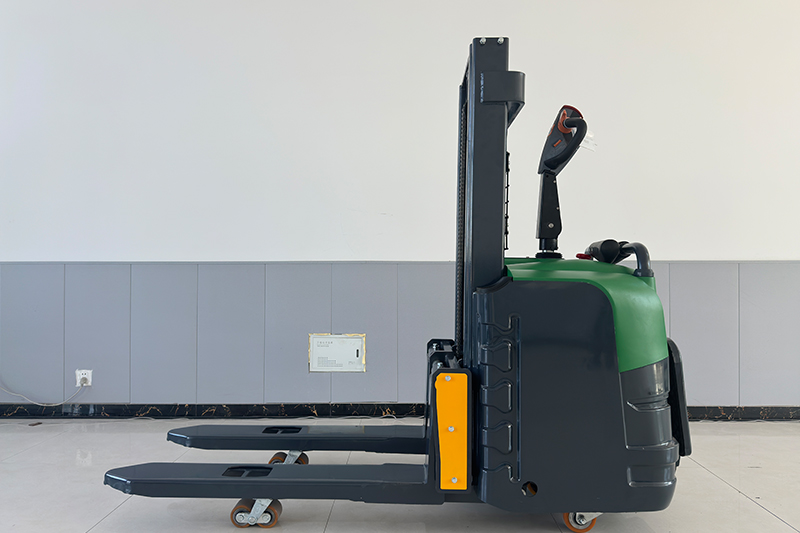

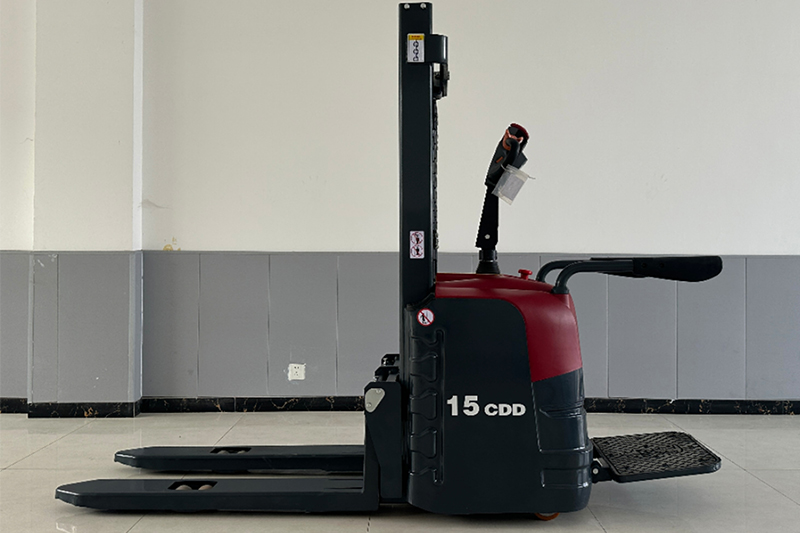

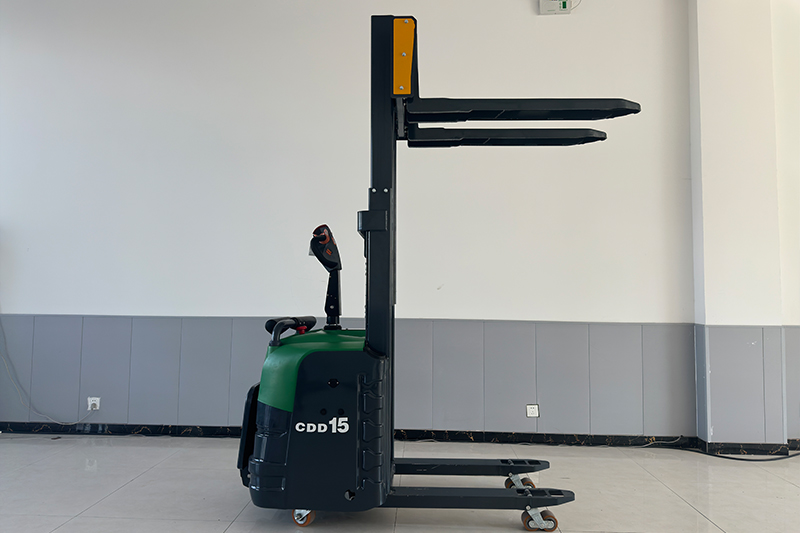

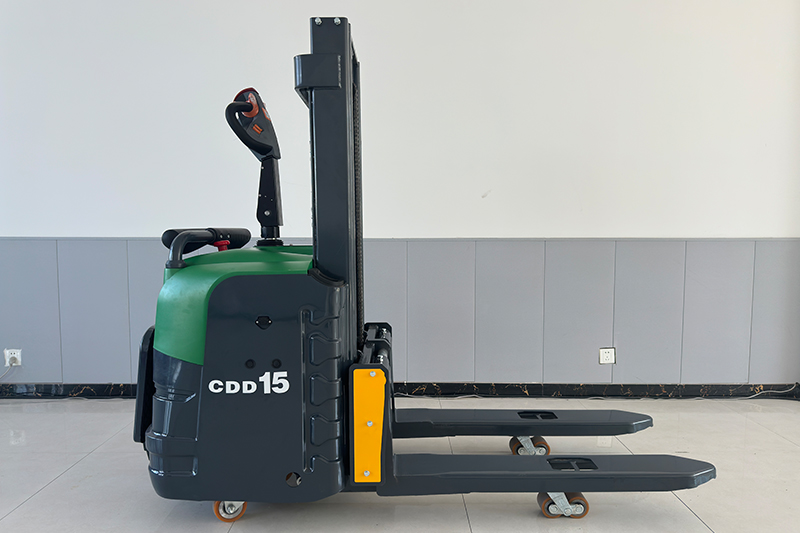

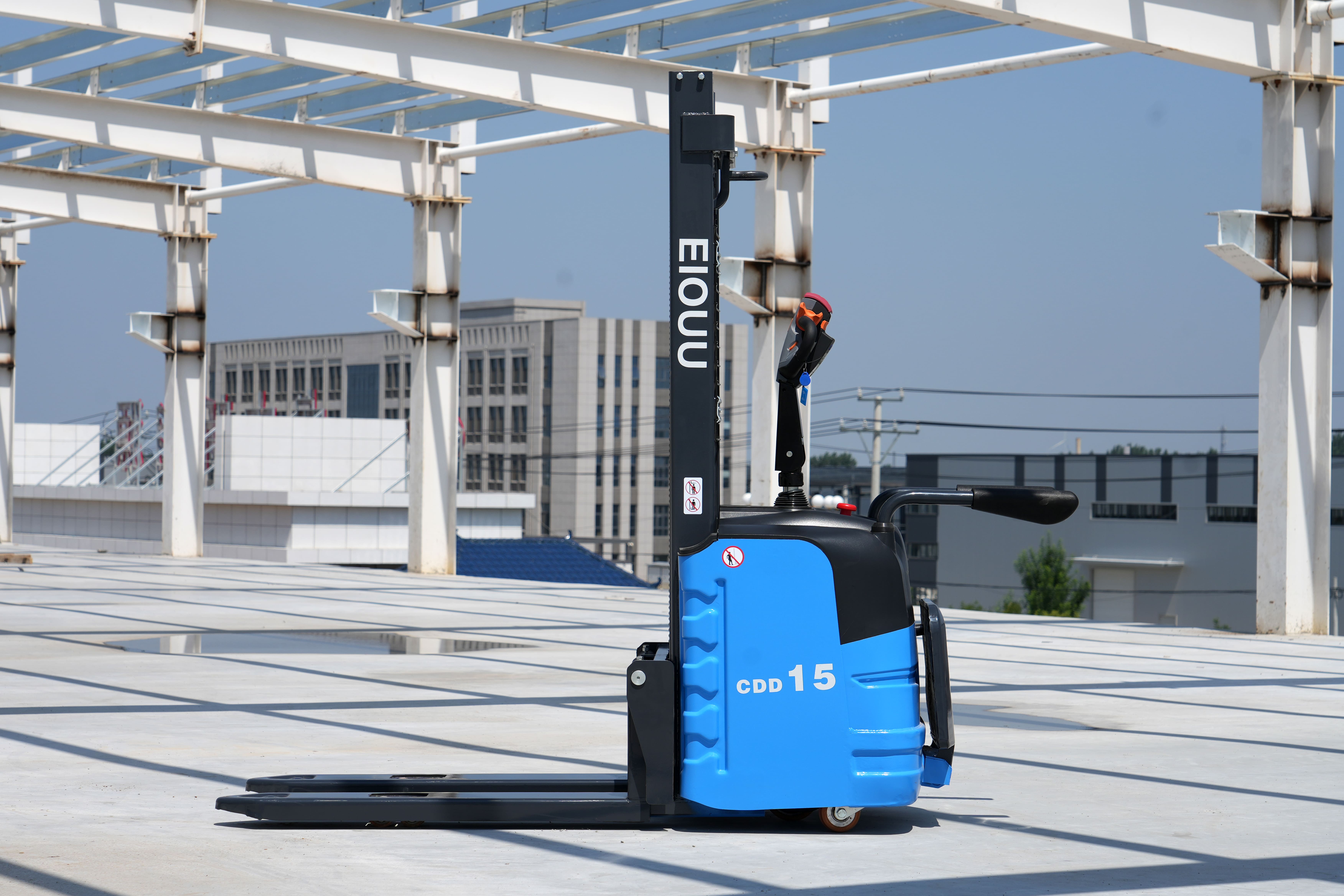

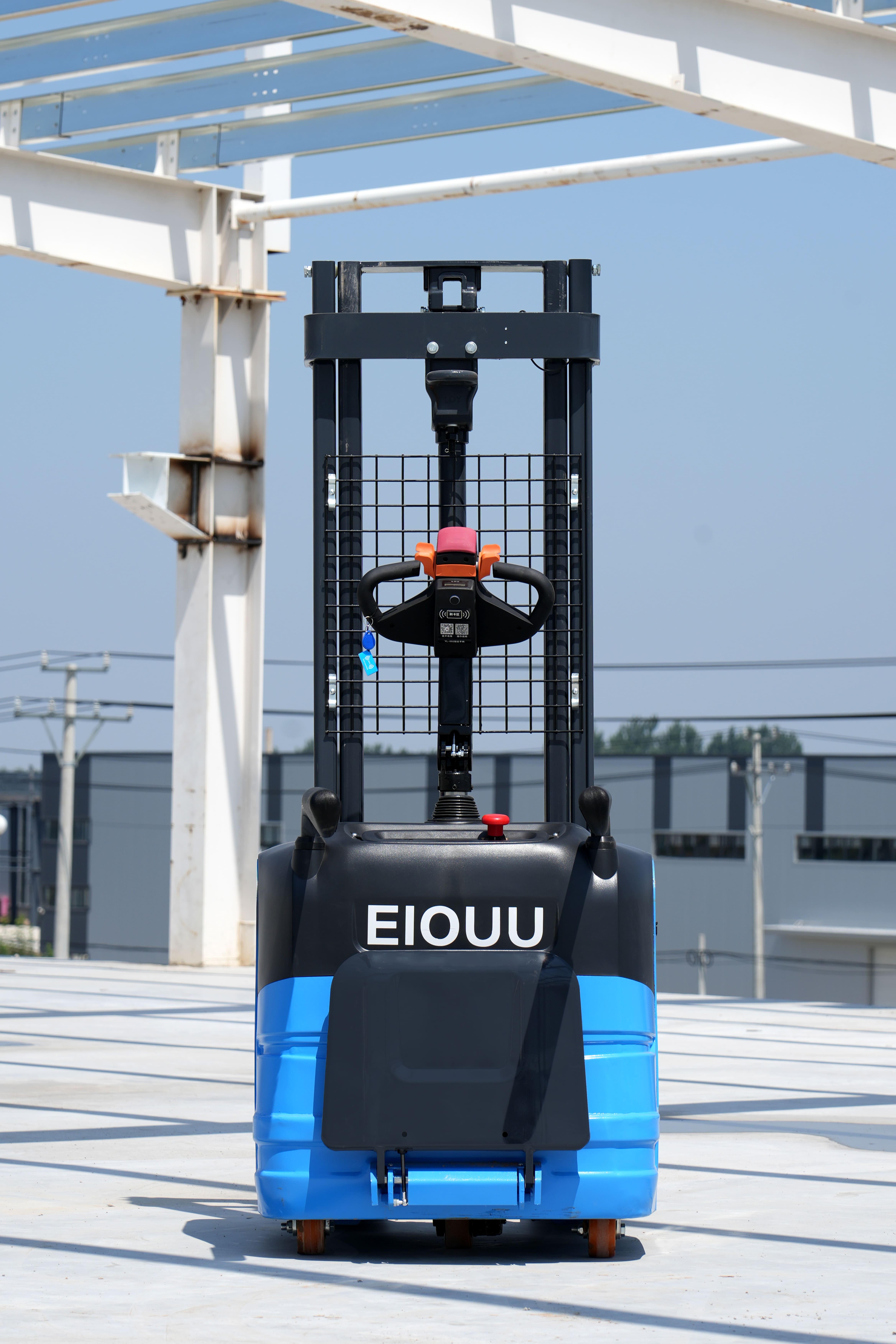

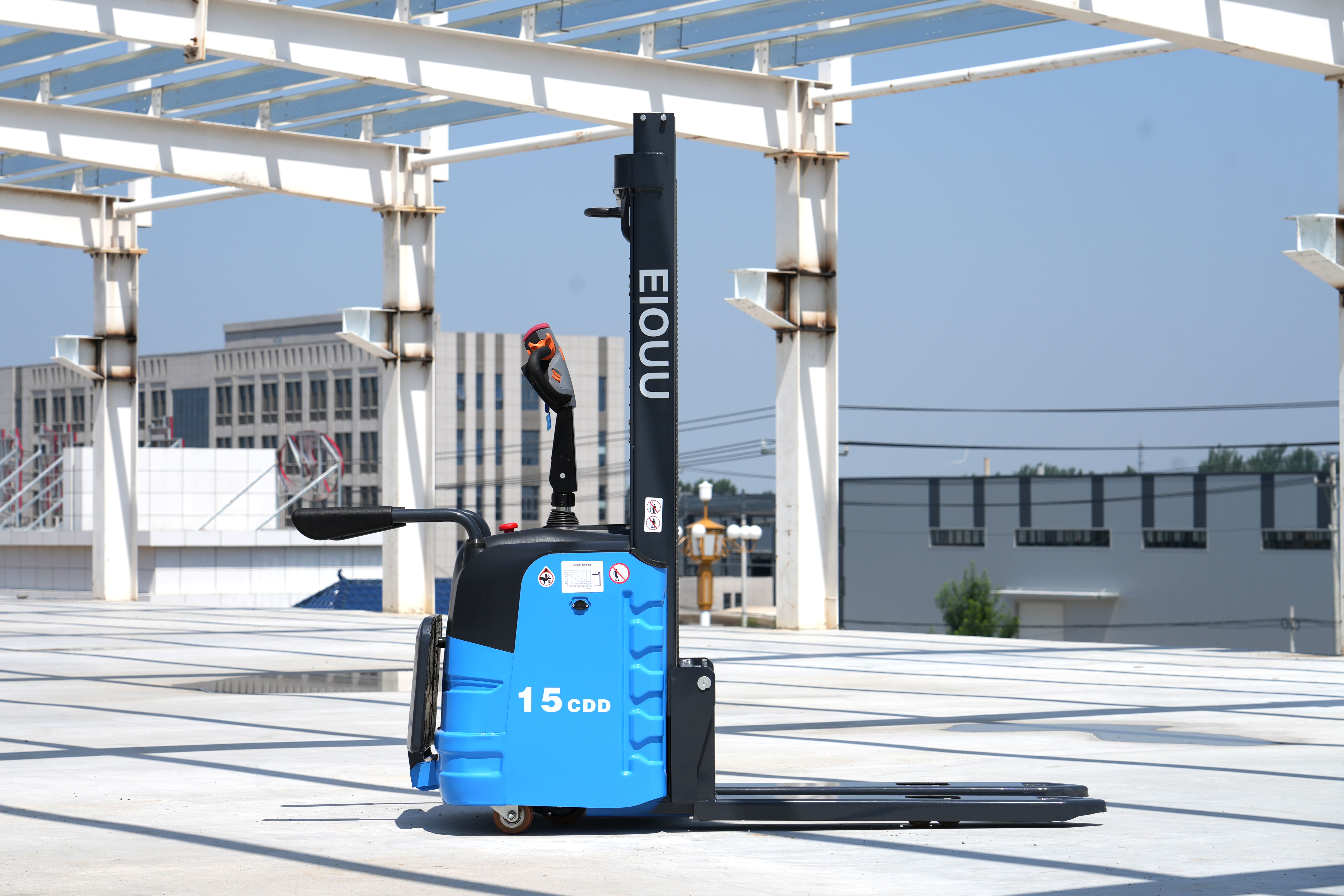

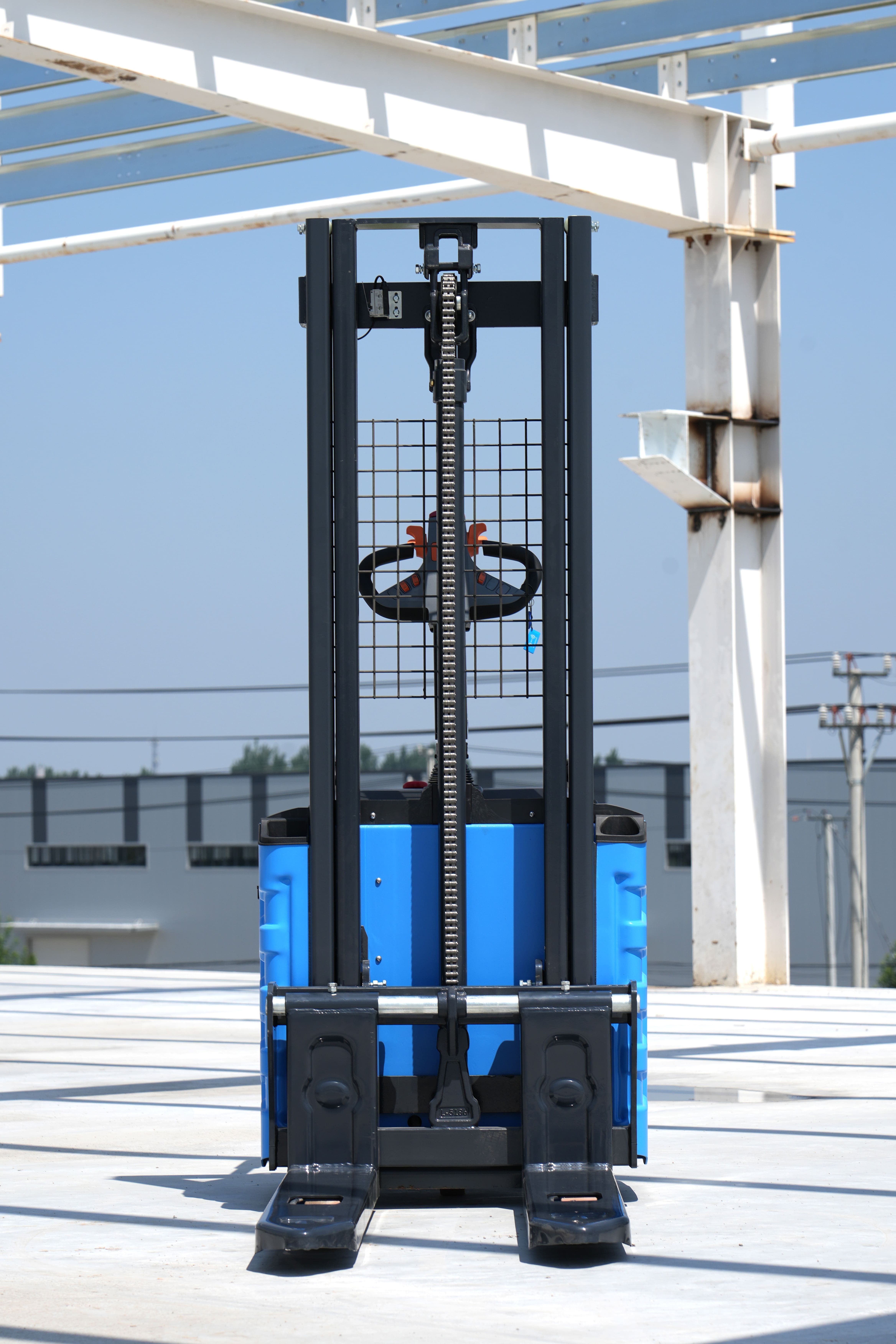

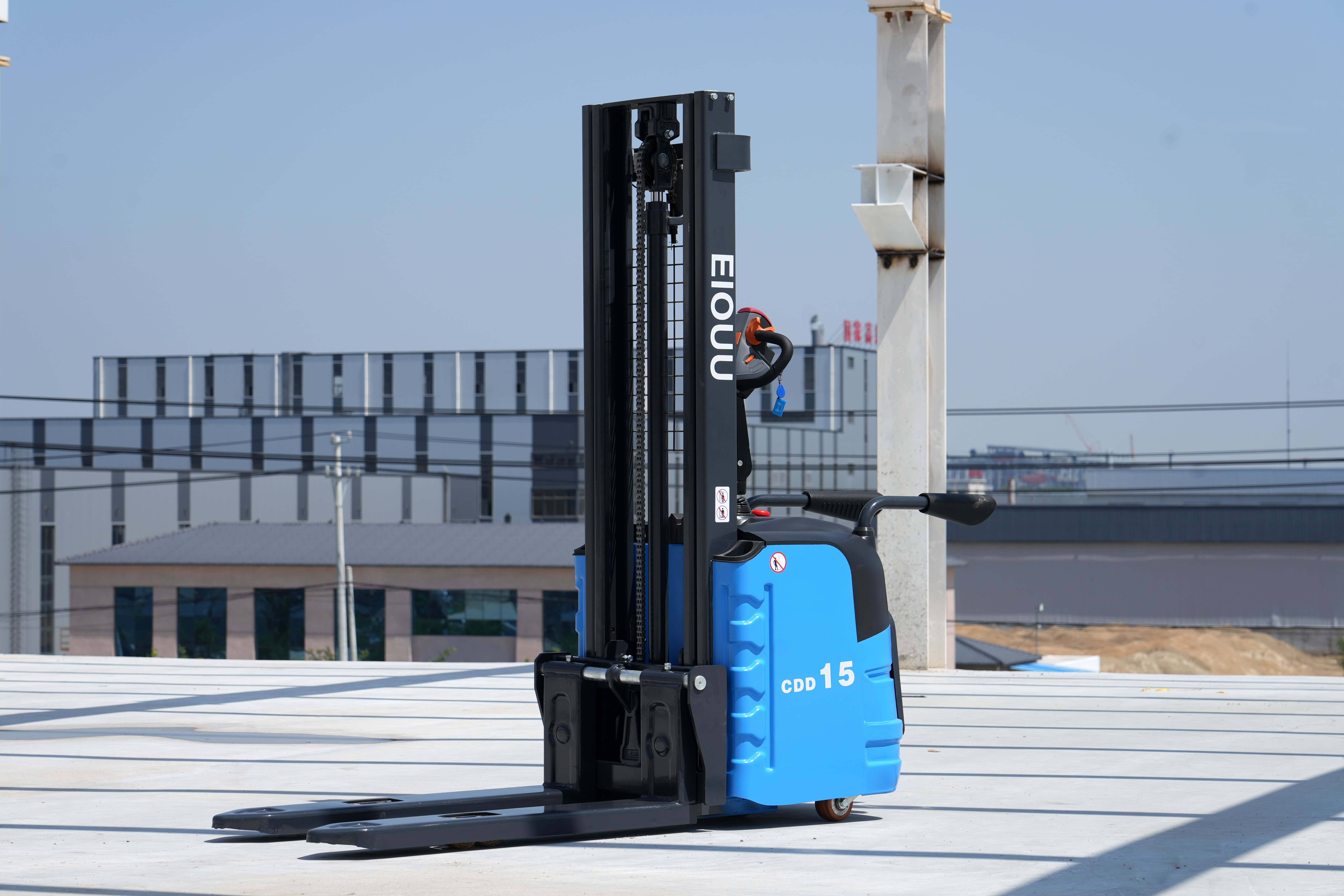

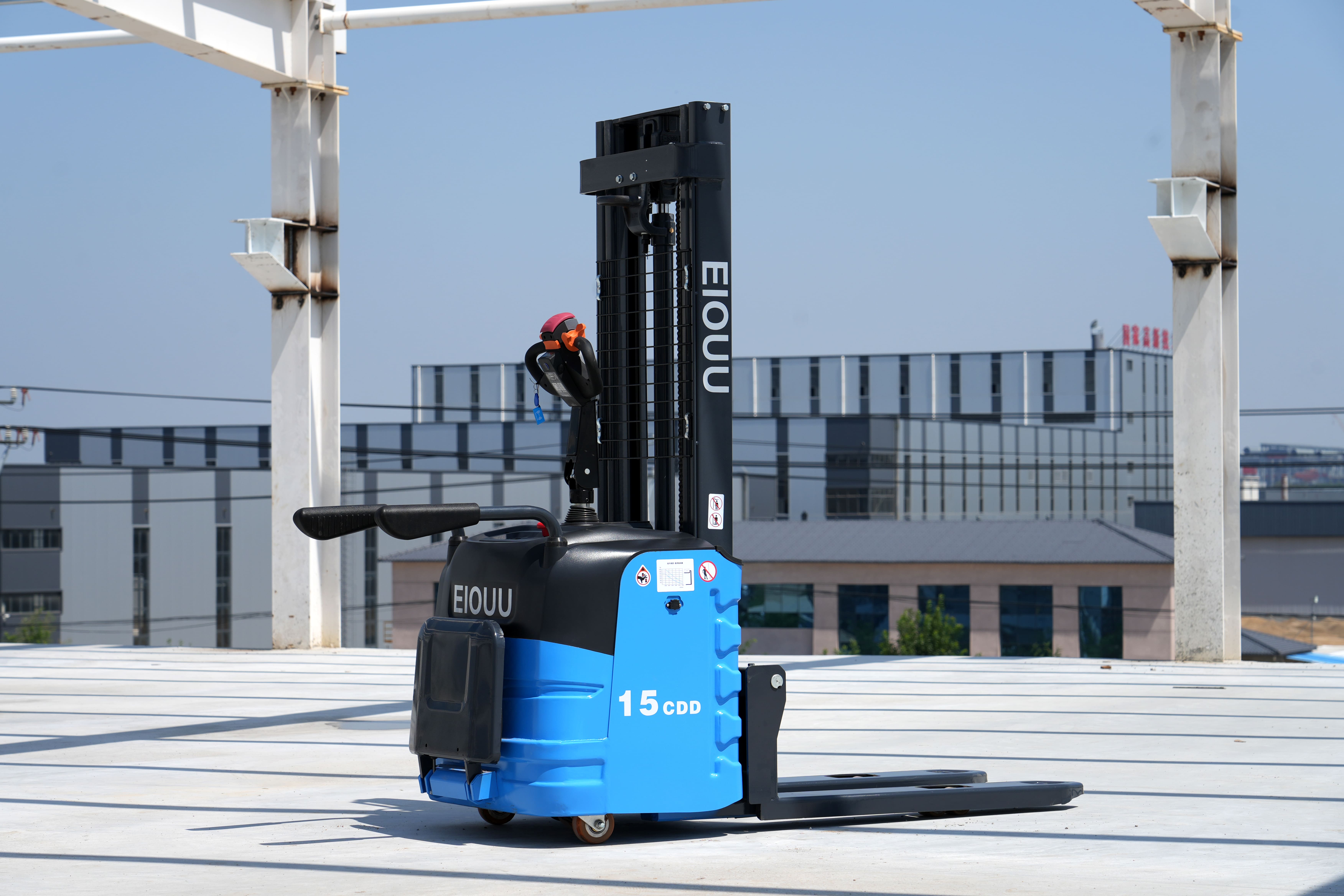

1.5 Ton Electric Stacker
Our 1.5 Ton Electric Stacker is designed for efficient pallet lifting, stacking and material handling in warehouses, factories and logistics centers. With a 1500 kg load capacity, compact 820 mm body width and flexible stand-on operation, it is ideal for working in limited spaces. A reinforced mast, adjustable forks, stable hydraulic system and multiple safety features provide reliable performance for demanding daily warehouse operations.
✔ 1500 kg Load Capacity
✔ Compact 820 mm Overall Width
✔ Adjustable Forks
✔ Free-Lift Mast Design
✔ Electric Drive & Lifting System
✔ Stable & Easy Operation
Specifications of 1.5 Ton Electric Stacker
Model | CDD15 |
Load Capacity | 1500 kg |
Load Center | 500 mm |
Operation Type | Stand-On |
Power Type | Electric |
Lifting Height | 2500 mm (Customization) |
Free Lift | 200 mm |
Overall Length | 2020 mm |
Overall Width | 820 mm |
Fork Size | 60 x180 x 1130 mm |
Fork Outside Width | 560 mm / 680 mm |
Turning Radius | 1600 mm |
Travel Speed, Loaded / Unloaded | 3.7 / 4.0 km/h |
Lift Speed, Loaded / Unloaded | 0.08 / 0.135 m/s |
Drive Motor | 0.8 kW |
Lift Motor | 2.2 kW |
Battery | 48V / 32Ah (Lithium-ion Batteries / Lead-acid Batteries) |
Brake Type | Electromagnetic |
Electric Stacker Safety Features
Safety is integrated throughout the CDD15 electric stacker design.
Emergency Reverse Function
The emergency reverse function helps protect the operator if the stacker moves too close to the operator during operation.
Multiple Lifting Limits
Multiple lifting limit protections help improve safety and stability during pallet stacking.

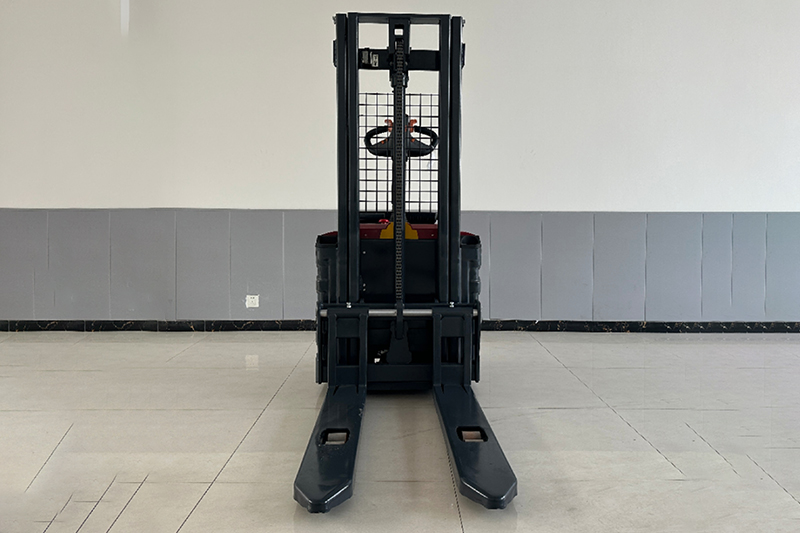

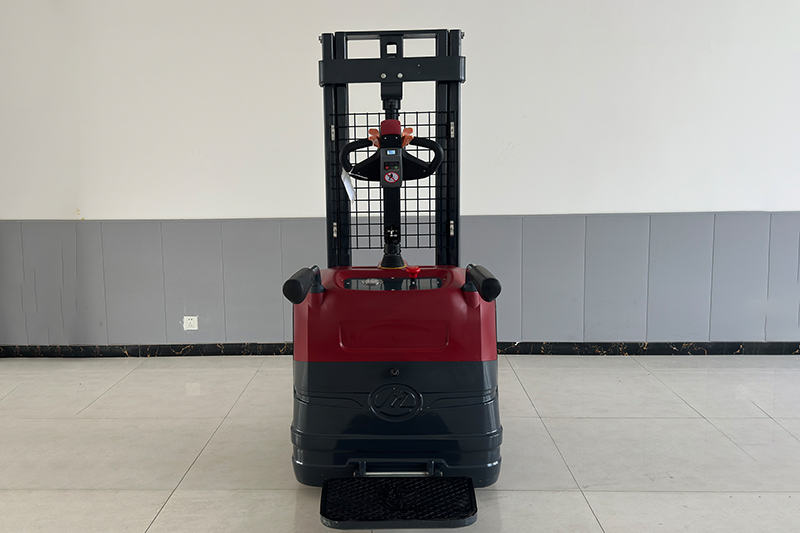

Reinforced Mast Guard
A reinforced steel mesh guard separates the operator from the load area, helping protect both the operator and goods.
Emergency Power-Off
The emergency power-off switch allows the electrical system to be quickly disconnected when necessary.
Pressure Monitoring
A standard pressure gauge allows operators to monitor hydraulic cylinder pressure during operation.
Why Choose EIOUU Electric Stacker?
✔ Professional electric material handling equipment manufacturer
✔ Electric stackers for distributors and wholesalers
✔ OEM & ODM customization available
✔ Adjustable fork and mast configurations
✔ Factory direct supply
✔ Export-oriented production and packaging
✔ Global shipping support
FAQ
What is the load capacity of the CDD15 electric stacker?
The CDD15 has a 1500 kg rated load capacity with a 500 mm load center.
What is the lifting height of the 1.5 ton electric stacker?
The standard CDD15 configuration has a 2500 mm lifting height. Different mast configurations can be discussed according to your application requirements.
Is this electric stacker suitable for narrow warehouse spaces?
Yes. The CDD15 has an overall width of 820 mm and a turning radius of 1600 mm, providing flexible maneuverability for warehouse material handling.
What type of operation does this electric stacker use?
The CDD15 is a stand-on electric stacker, making it suitable for frequent pallet movement and stacking operations.
Can the fork width be adjusted?
Yes. Adjustable forks allow the stacker to accommodate different pallet and cargo dimensions.
What is the price of a 1.5 ton electric stacker?
The price depends on lifting height, battery, mast configuration, order quantity and customization requirements. Contact EIOUU for a quotation based on your requirements.
OEM & ODM Electric Stacker Solutions
Build Your Brand with EIOUU
EIOUU provides flexible OEM & ODM electric stacker solutions for forklift and material handling equipment distributors, wholesalers and importers worldwide.
From your logo and body color to battery, mast, forks and functional configurations, we can customize electric stackers according to your target market and business requirements.
Brand Customization
Build your own material handling equipment brand with private-label solutions.
• Custom Logo & Nameplate
• Electric Stacker Body Branding
• Custom Labels & Stickers
• Private Label Packaging
• Distributor Branding
Color Customization
Choose colors according to your brand identity and target market.
• Custom Body Colors
• Multi-Color Combinations
• Brand-Matched Color Schemes
Battery Options
Battery configurations can be selected according to operating requirements.
• Battery Capacity Options
• Charging Solutions
• Battery Configuration for Different Working Hours
Mast & Lifting Options
Configure the stacker for different pallet stacking requirements.
• Different Lifting Heights
• Mast Configuration Options
• Free-Lift Options
• Customized Mast Solutions
Fork Options
Fork configurations can be selected according to pallet and cargo dimensions.
• Adjustable Forks
• Custom Fork Length
• Fork Width Options
• Different Pallet Applications
