PRODUCT DESCRIPTION
EIOUU · ELECTRIC DRIVE · OEM & ODM

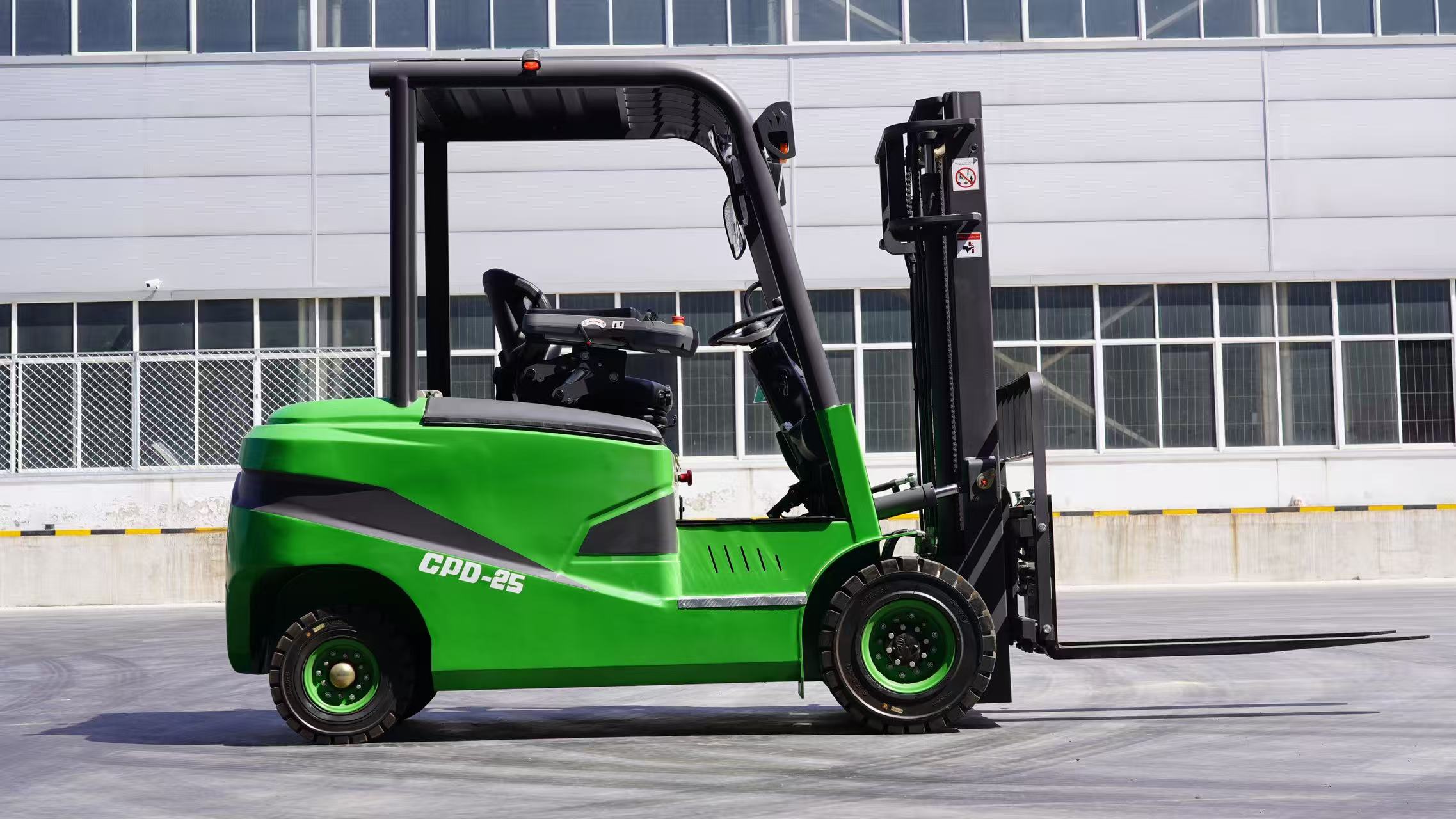

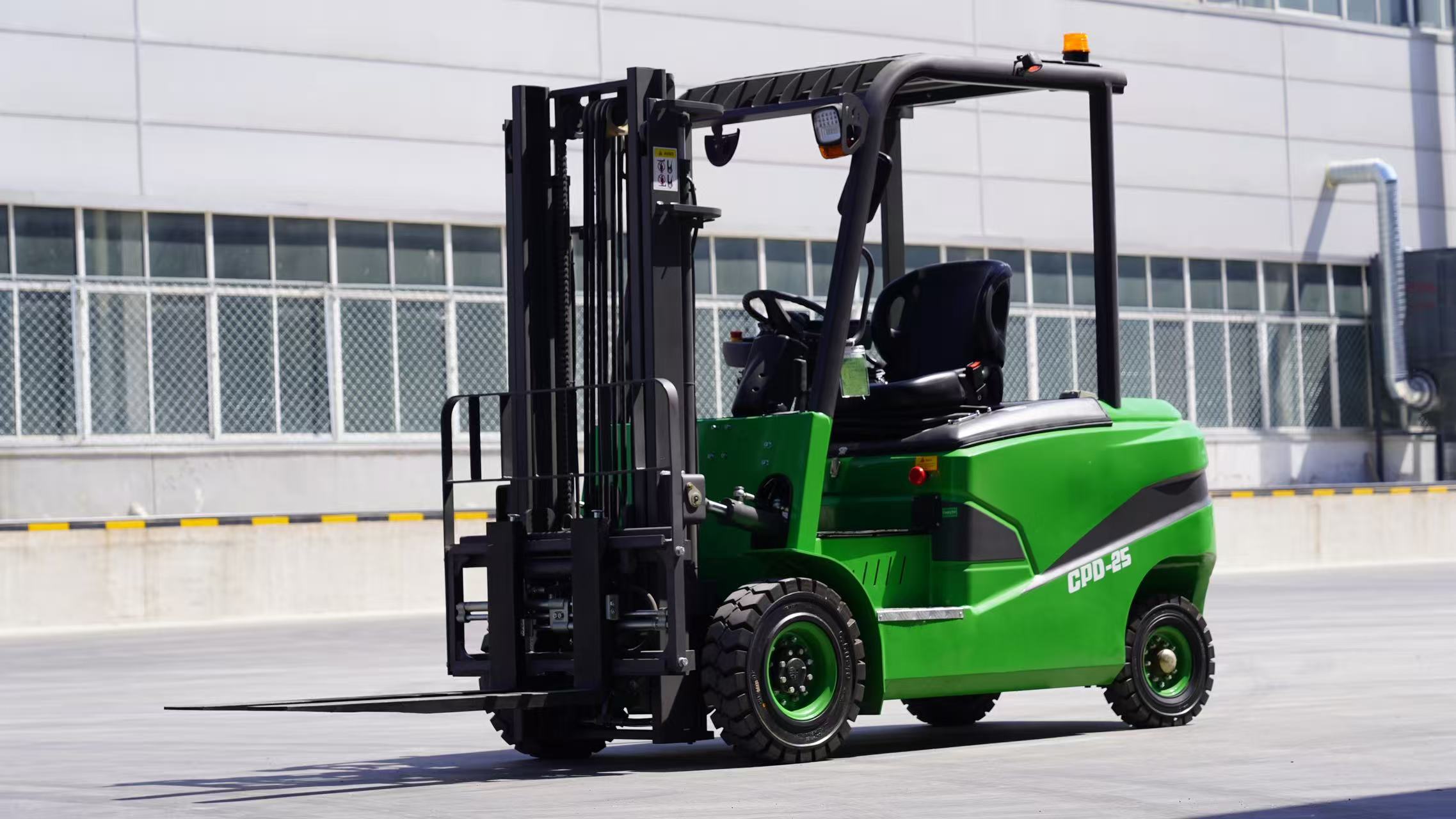

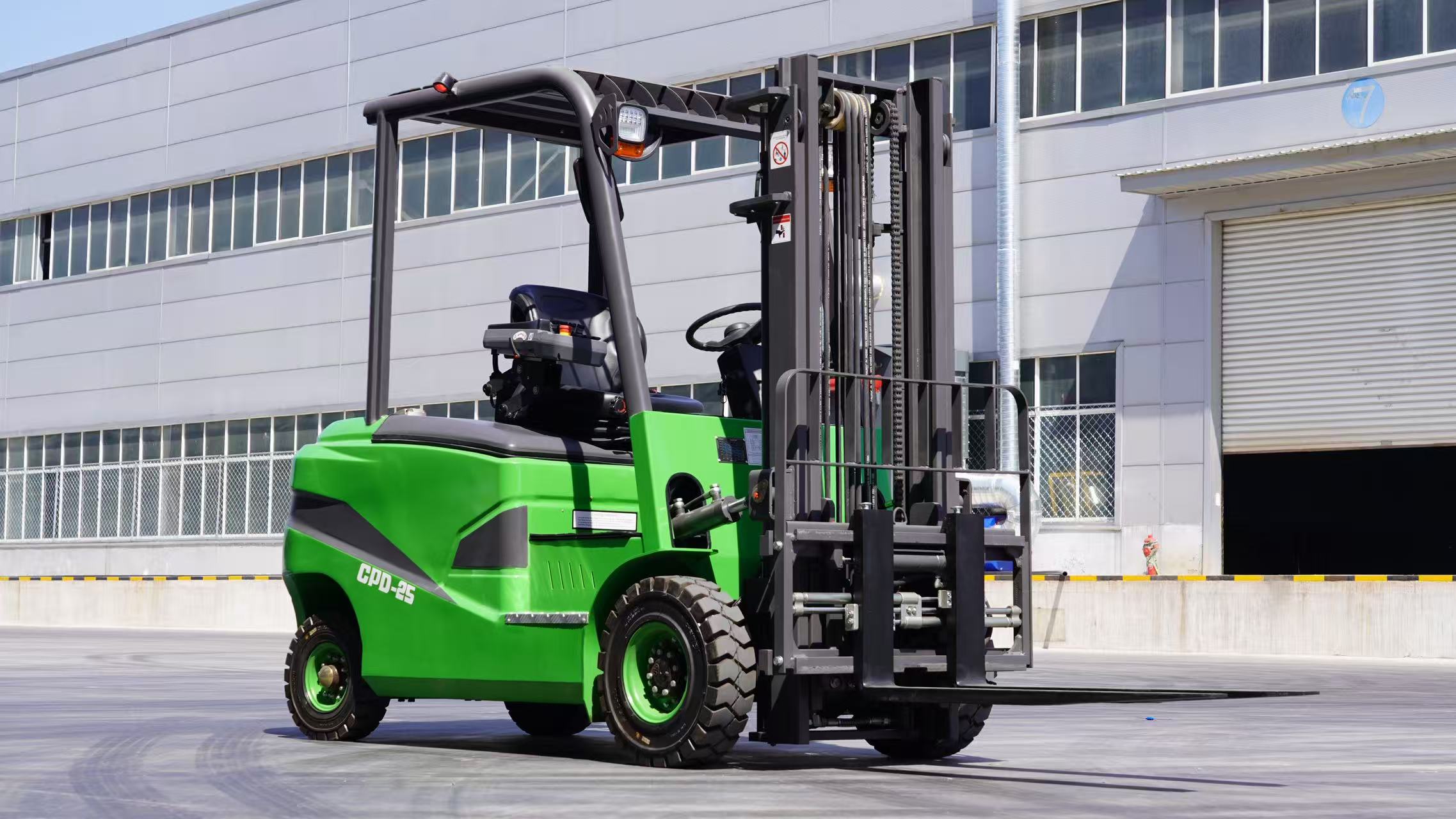

2.5-Ton Fingertip Control Electric Forklift
Close-at-hand hydraulic controls for daily pallet handling. Electric power and configuration options for warehouses, factories and distributors.
KEY BUYER HIGHLIGHTS
Practical Control for Repeated Handling
2,500 kg rated load capacity
3,000 mm standard lifting height
Armrest-mounted fingertip hydraulic controls
Solid industrial tires
Lithium and lead-acid battery options
Custom logo, colors and configurations
KEY SPECIFICATIONS AT A GLANCE
Designed Around the Operator’s Working Position
A practical seated layout with hydraulic switches grouped beside the operator.
01 · OPERATOR COMFORT & CONTROL
Keep the Main Controls Within Reach

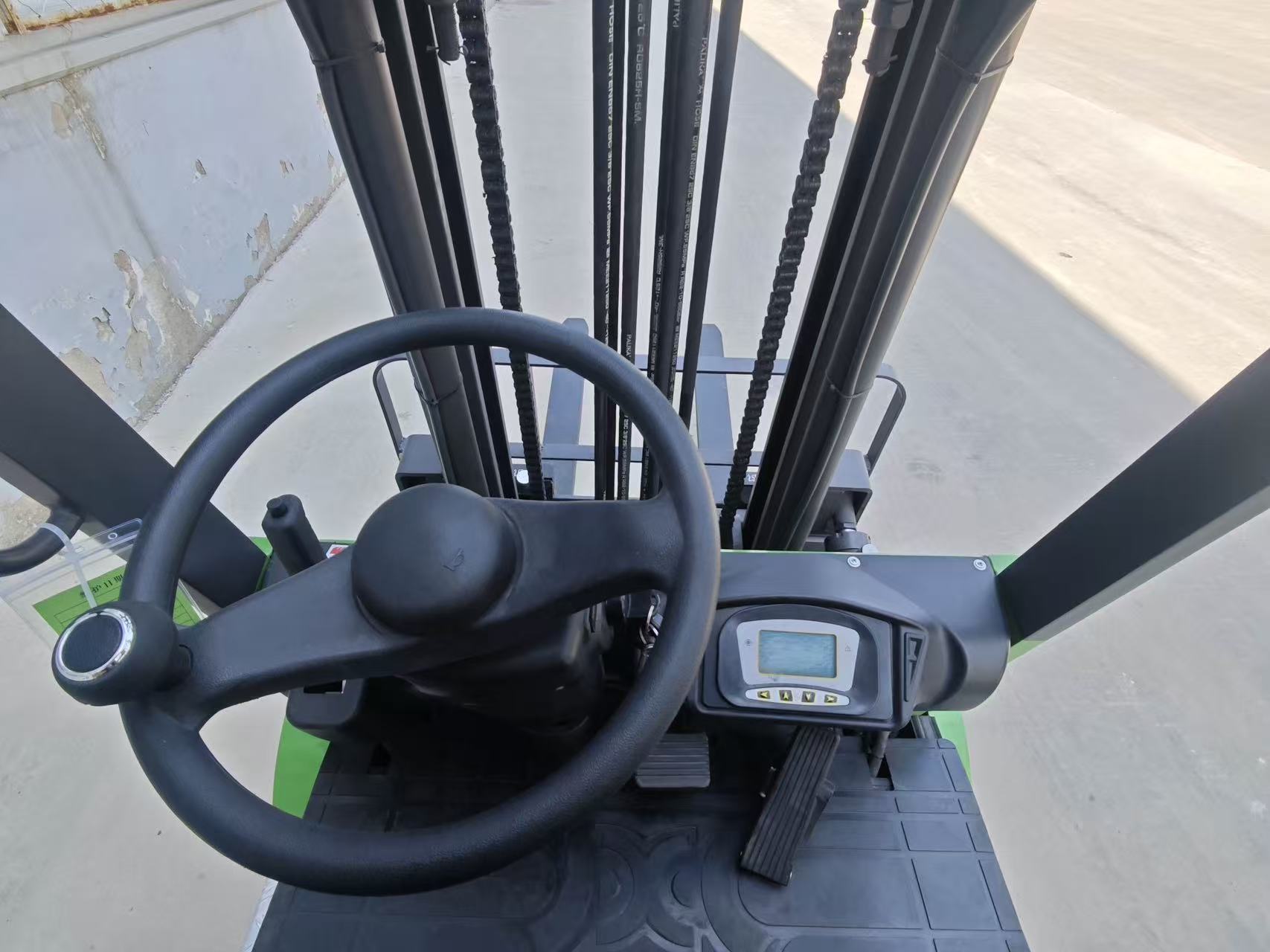

The side console puts the hydraulic switches near the operator’s resting hand. The steering wheel and instrument display remain in front, creating distinct areas for driving and load handling.
Armrest-mounted hydraulic control layout
Display positioned near the steering wheel
Emergency-stop button on the console
Seated operator compartment
02 · HYDRAULIC OPERATION
Small Hand Movements for Load Handling
Fingertip switches offer an alternative to repeatedly reaching for mechanical hydraulic levers. The layout brings the main hydraulic functions close to the hand during repeated pallet positioning.
Lift, lower and mast tilt functions
Additional hydraulic functions where configured
Side shift confirmed with the selected truck
Switch assignments confirmed in the final specification
03 · CONSOLE DETAILS
A Clearly Grouped Control Area
The reference console combines a padded armrest, hydraulic switches and additional controls in one area. The prominent red emergency-stop button is visible beside the control switches.
Review the required hydraulic circuits before ordering
Confirm the console layout for your chosen model
Match optional functions to installed equipment
Detailed Technical Specifications
Fi-CPD25 reference configuration. Confirm the ordered mast, battery and optional equipment in the quotation.
| Specification | Fi-CPD25 |
|---|---|
| Model | Fi-CPD25 |
| Rated load capacity | 2,500 kg |
| Standard lifting height | 3,000 mm; customizable |
| Power type | Electric |
| Battery options | Lithium / lead-acid / combined lead-acid |
| Tire type | Solid tires |
| Truck weight including battery | 3,300 kg |
| Length excluding forks | 2,525 mm |
| Fork length | 1,070 mm |
| Overall width | 1,120 mm |
| Lowered mast height | 2,180 mm |
| Drive motor rated power | 7.5 kW |
| Lifting motor rated power | 8.0 kW |
Dimensions and weight relate to the reference configuration. Confirm any changes associated with selected equipment.
Where It Works
Warehouses
Receiving, storage and dispatch-area pallet handling.
Factories
Moving materials and finished goods between working areas.
Logistics Centers
Repeated pallet positioning, loading and unloading.
Distribution Operations
Day-to-day handling across receiving and order dispatch.
OEM & ODM for Your Market
Discuss your logo, colors, battery, lifting height, forks and attachment requirements with our team. Configuration availability is reviewed against the selected model.
Private-label branding and product labels
Body colors matched to your brand reference
Battery and charging arrangements for the working schedule
Mast and attachment options for the handling task
For a useful quotation, send the rated load, load dimensions, lift height, aisle clearance, working hours, quantity and destination.
Explore OEM & ODM SupportFrequently Asked Questions
What does fingertip control operate?
It operates the hydraulic functions using switches beside the operator. The exact functions depend on the installed hydraulic circuits and confirmed configuration.
Is side shift included?
Confirm side shift in the quotation. A switch position alone is not confirmation that a specific attachment or hydraulic circuit is included.
Can the battery and mast be changed?
Battery and mast options can be discussed. Provide your working hours, charging conditions, lift height and access-clearance requirements.
Can you supply our brand?
OEM & ODM requirements are welcome. Send your logo, color reference, quantity and target market for a tailored proposal.
